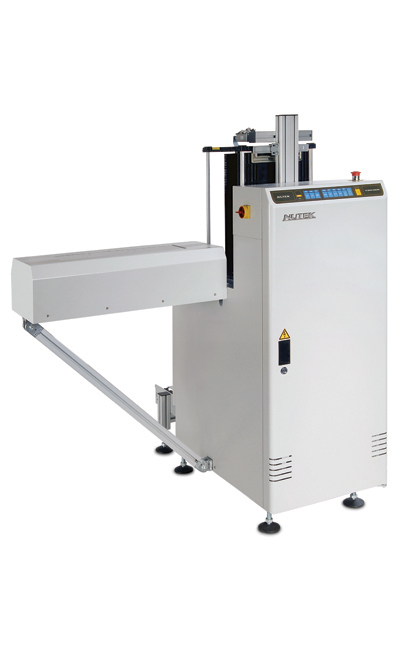

Single Magazine Loader

Features

  • User friendly ‘soft touch’ LED membrane control panel
  • Pneumatic clamps provided for magazine alignment
  • Pneumatic pusher’s pressure regulated
  • Adjustable pusher position
  • SMEMA compatible

Description

This unit is used for loading of PCBs to the production line.

Specifications

Model No.NTM0700LM
SizeM
Machine Dimension (mm)
L x W x H
1230 x 1170 x 1330
Fixed Point to Front
Dimension (X)
380 mm
Weight
(Approximately)
130 kg
Model No.NTM0700LL
SizeL
Machine Dimension (mm)
L x W x H
1515 x 1455 x 1330
Fixed Point to Front
Dimension (X)
380 mm
Weight
(Approximately)
180 kg
