NUTEK :: Standard Series - Dual Track Linking Conveyor (500 & 1000mm)

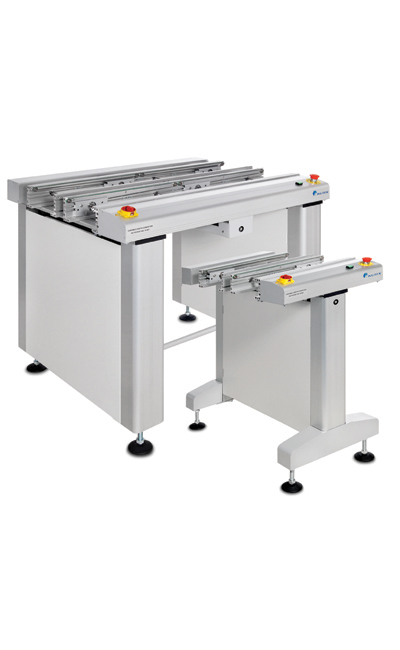

Dual Track Linking Conveyor (500 & 1000mm)

Modular design
Stability enhanced by ‘robust design’
Laser carved stainless steel side guides for superior quality and durability
Ergonomically designed arm rest
Smooth and parallel width adjustment
Width adjustment for individual track can be independently controlled (optional)
Inspection Mode (optional)
Two independently controlled belt segment
Multi-zone concept available upon request
Different lengths available upon request
SMEMA compatible
Patented (SG Patent No.: 91261)

This unit is used to link between SMD machines or board handling units in dual track PCB assembly lines.

Model No.	Size	Machine Dimension (mm) L x W x H	Fixed Point to Front Dimension (X)	Weight (Approximately)
NTM0401DM-500-1	M	500 x 780 x 980 mm	165 mm	60 kg
NTM0401DM-1000-1	L	1000 x 780 x 980 mm	165 mm	110 kg

Model No.	NTM0401DM-500-1
Size	M
Machine Dimension (mm) L x W x H	500 x 780 x 980 mm
Fixed Point to Front Dimension (X)	165 mm
Weight (Approximately)	60 kg

Model No.	NTM0401DM-1000-1
Size	L
Machine Dimension (mm) L x W x H	1000 x 780 x 980 mm
Fixed Point to Front Dimension (X)	165 mm
Weight (Approximately)	110 kg
