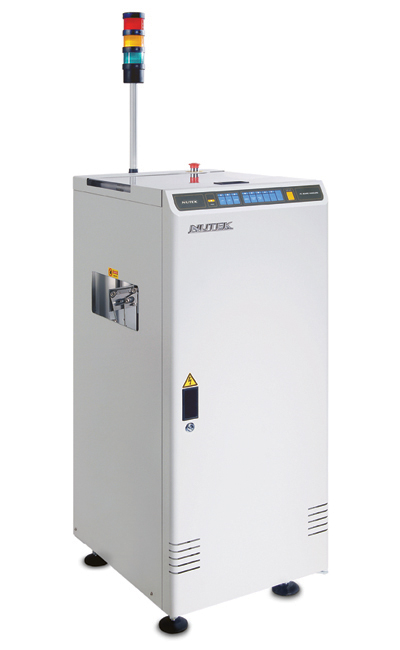

Bare Board Loader/with Pass Through Mode

Features

Surrounded with covers to provide highest level of safety
Top safety cover can be opened for easy access to hardware during maintenance
User friendly ‘soft touch’ LED membrane control panel
Adjustable suction positions provide better grips of PCBs
Smooth and parallel width adjustment
Small machine footprint
SMEMA compatible

Description

This unit is used for loading of bare PCBs to the production line.

Specifications

Model No.	Size	Machine Dimension (mm) L x W x H	Fixed Point to Front Dimension (X)	Weight (Approximately)
NTM0200-M	M	500 x 730 x 1330 mm	234 mm	110 kg
NTM0200-L	L	653 x 870 x 1330 mm	234 mm	140 kg
NTM0200PM (Pass through)	M	500 x 730 x 1330 mm	234 mm	110 kg
NTM0200PL (Pass through)	L	653 x 870 x 1330 mm	234 mm	140 kg

Model No.	NTM0200-M
Size	M
Machine Dimension (mm) L x W x H	500 x 730 x 1330 mm
Fixed Point to Front Dimension (X)	234 mm
Weight (Approximately)	110 kg

Model No.	NTM0200-L
Size	L
Machine Dimension (mm) L x W x H	653 x 870 x 1330 mm
Fixed Point to Front Dimension (X)	234 mm
Weight (Approximately)	140 kg

Model No.	NTM0200PM (Pass through)
Size	M
Machine Dimension (mm) L x W x H	500 x 730 x 1330 mm
Fixed Point to Front Dimension (X)	234 mm
Weight (Approximately)	110 kg

Model No.	NTM0200PL (Pass through)
Size	L
Machine Dimension (mm) L x W x H	653 x 870 x 1330 mm
Fixed Point to Front Dimension (X)	234 mm
Weight (Approximately)	140 kg
