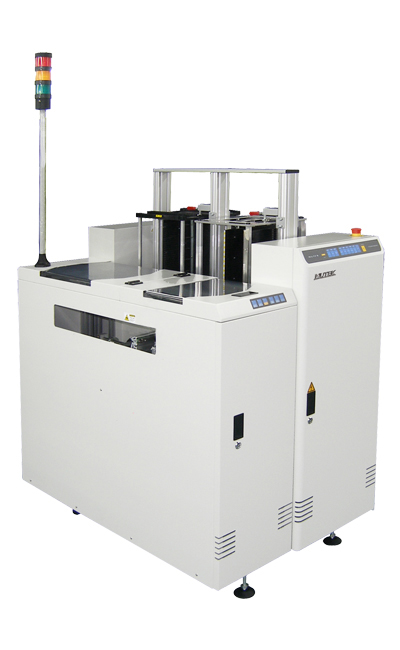

Dual Magazine Loader/Unloader

Features

Sturdy and stable design
User friendly ‘soft touch’ LED membrane control panel
Toggle level clamps provided for magazine alignment
Pneumatic pusher’s pressure regulated
High throughput with short magazine change-over time
SMEMA compatible

Description

This unit is used for loading or unloading of PCBs in dual track PCB assembly lines.

Specifications

Model No.	Size	Machine Dimension (mm) L x W x H	Fixed Point to Front Dimension (X)	Weight (Approximately)
NTM2000LM (Loader)	M	1080 x 1355 x 1330 mm	380 mm	330 kg
NTM2000LL (Loader)	L	1420 x 1680 x 1330 mm	380 mm	380 kg
NTM2000UM (Unloader)	M	880 x 1350 x 1330 mm	380 mm	330 kg
NTM2000UL (Unloader)	L	1140 x 1680 x 1330 mm	380 mm	380 kg

Model No.	NTM2000LM (Loader)
Size	M
Machine Dimension (mm) L x W x H	1080 x 1355 x 1330 mm
Fixed Point to Front Dimension (X)	380 mm
Weight (Approximately)	330 kg

Model No.	NTM2000LL (Loader)
Size	L
Machine Dimension (mm) L x W x H	1420 x 1680 x 1330 mm
Fixed Point to Front Dimension (X)	380 mm
Weight (Approximately)	380 kg

Model No.	NTM2000UM (Unloader)
Size	M
Machine Dimension (mm) L x W x H	880 x 1350 x 1330 mm
Fixed Point to Front Dimension (X)	380 mm
Weight (Approximately)	330 kg

Model No.	NTM2000UL (Unloader)
Size	L
Machine Dimension (mm) L x W x H	1140 x 1680 x 1330 mm
Fixed Point to Front Dimension (X)	380 mm
Weight (Approximately)	380 kg
