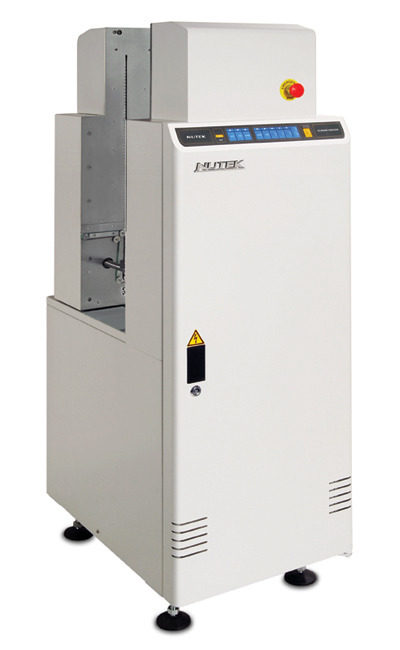

Open LIFO Buffer

Features

  • User friendly ‘soft touch’ LED membrane control panel
  • Last In First Out (LIFO) and pass through operating modes
  • Open concept provides easy access to the PCBs
  • ‘Threshold’ system provided
  • Smooth and parallel width adjustment (leadscrew)
  • Small machine footprint
  • SMEMA compatible

Description

This unit is used as a buffer between SMD machines.

Specifications

Model No.NTM2700-M
SizeM
Machine Dimension (mm)
L x W x H
500 x 746 x 1565 mm
Fixed Point to Front
Dimension (X)
234 mm
Weight
(Approximately)
170 kg
Model No.NTM2700-L
SizeL
Machine Dimension (mm)
L x W x H
500 x 905 x 1565 mm
Fixed Point to Front
Dimension (X)
234 mm
Weight
(Approximately)
200 kg
