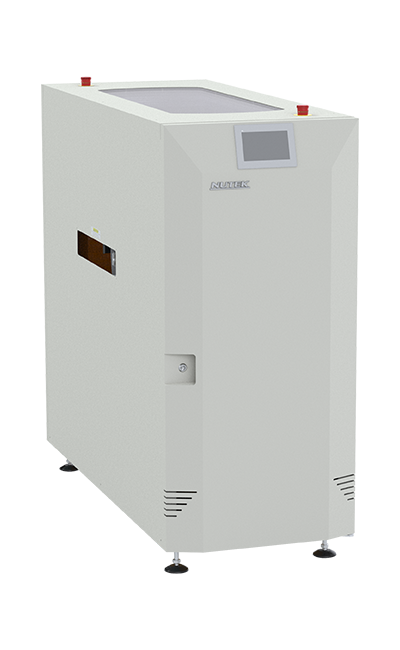

NTA X-axis Inverter

Features

Equipped with built-in torque limiter to ensure highest level of safety
‘Top safety cover’ can be opened for easy access to hardware during maintenance
7” touchscreen panel
Smooth and precise inverting motion
Subsequent inversions continue from the last unloading position (short cycle time)
Small machine footprint
Servo motor controlled width adjustment
Programmable product setting
Industry 4.0 ready
OPC UA ready
CANOpen communication ready

Descriptions

The NTA X-axis Inverter is used to invert a PCB 180° along the X-axis for ‘double-sided’ process.

Product Video

Specification

Model No.	Size	Machine Dimension (mm) L x W x H	Fixed Point to Front Dimension (X)	Weight (Approximately)
NTA0320IM	M	653 x 1635 x 1535 mm	620 mm	366 kg
NTA0320IXL	XL	653 x 1635 x 1535 mm	620 mm	366 kg

Model No.	NTA0320IM
Size	M
Machine Dimension (mm) L x W x H	653 x 1635 x 1535 mm
Fixed Point to Front Dimension (X)	620 mm
Weight (Approximately)	366 kg

Model No.	NTA0320IXL
Size	XL
Machine Dimension (mm) L x W x H	653 x 1635 x 1535 mm
Fixed Point to Front Dimension (X)	620 mm
Weight (Approximately)	366 kg
