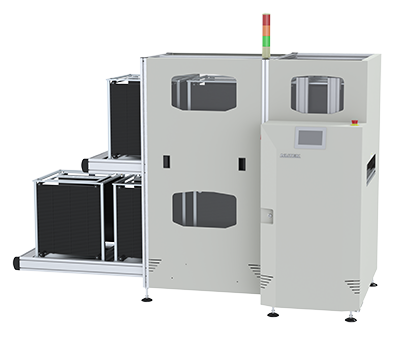

The NTA Multi Magazine Line Loader is used to load PCB from a magazine. The attached pusher cylinder will push PCB out from the magazine to downstream machine. The lifter in the NTA Multi Magazine Line Loader will then ascend to the next slot to stand by for loading.
| Model No. | NTA0110LM |
| Size | M |
| Machine Dimension (mm) L x W x H | 2010 x 995 x 1700 mm |
| Fixed Point to Front Dimension (X) | 405 mm |
| Weight (Approximately) | 235 kg |
| Model No. | NTA0110LXL |
| Size | XL |
| Machine Dimension (mm) L x W x H | 2535 x 1220 x 1700 mm |
| Fixed Point to Front Dimension (X) | 405 mm |
| Weight (Approximately) | 400 kg |
