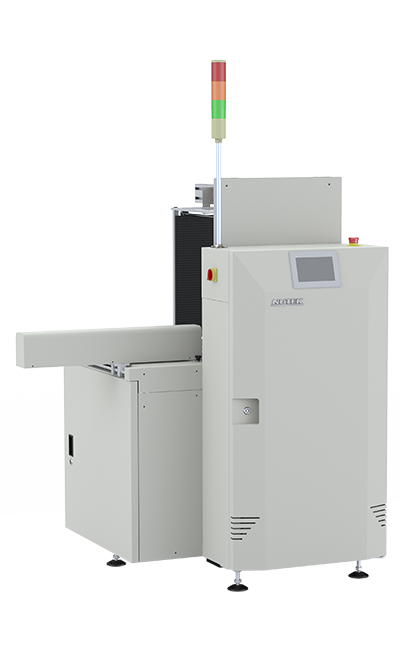

NTA Single Magazine Line Loader

Features

  • 7” touchscreen panel
  • Selectable ‘Top to bottom’ or ‘Bottom to top’ loading sequence
  • Toggle level clamps provided for magazine alignment
  • Servo motor driven lifter enable precise indexing
  • Pneumatic pusher’s pressure regulated
  • Manually adjustable pusher position
  • Programmable magazine and product setting
  • User management function allow user level access control
  • Ethernet port for network interface
  • Towerlight display for machine status
  • Industry 4.0 ready
  • OPC UA ready
  • CANOpen communication ready

Descriptions

The NTA Single Magazine Line Loader is used to load PCB to downstream machine. The attached pusher will push the PCB to downstream machine and then the lifter will index to the next available slot. This machine is specially recommended for High Mix Low Volume production line.

Specification

Model No.NTA0710LM
SizeM
Machine Dimension (mm)
L x W x H
1265 x 880 x 1330 mm
Fixed Point to Front
Dimension (X)
475 mm
Weight
(Approximately)
170 kg
Model No.NTA0710LXL
SizeXL
Machine Dimension (mm)
L x W x H
1330 x 1130 x 1330 mm
Fixed Point to Front
Dimension (X)
475 mm
Weight
(Approximately)
180 kg
