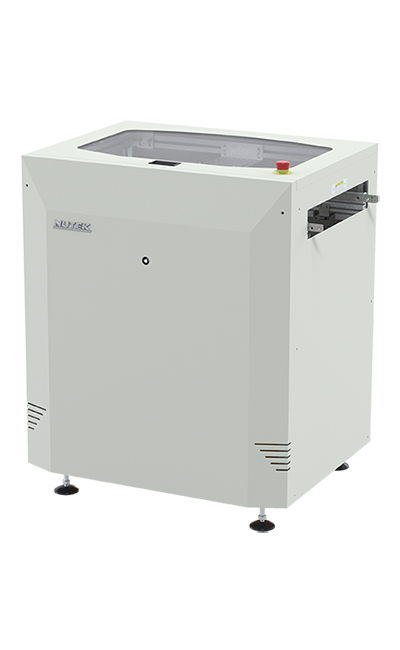

The NTA Pusher Conveyor is linked to the Multi Magazine Unloader to receive PCB from upstream machine. The pusher will then push the PCB into the empty magazine slot in the Multi Magazine Unloader.
| Model No. | NTA0110PM |
| Size | M |
| Machine Dimension (mm) L x W x H | 755 x 590 x 1130 mm |
| Fixed Point to Front Dimension (X) | 175 mm |
| Weight (Approximately) | 70 kg |
| Model No. | NTA0110PXL |
| Size | XL |
| Machine Dimension (mm) L x W x H | 950 x 820 x 1130 mm |
| Fixed Point to Front Dimension (X) | 175 mm |
| Weight (Approximately) | 100 kg |
