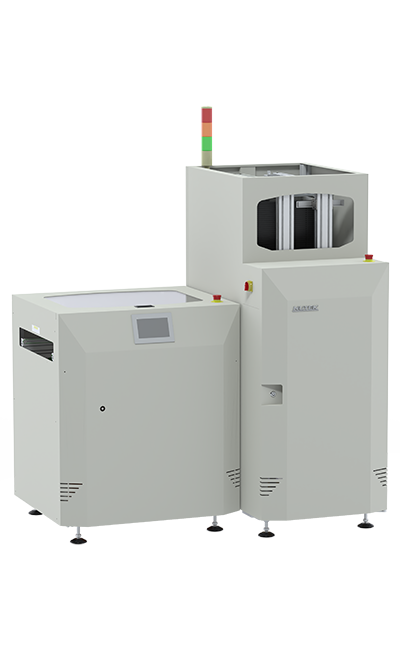

NTA Single Magazine Buffer


  • 7” touchscreen panel
  • Towerlight display for machine status
  • First In First Out (FIFO), Last In First Out (LIFO), loader, unloader, reject stock and pass through operating modes
  • Oven Info Threshold signal
  • Good/bad board separation
  • Servo motor controlled indexing
  • Pneumatic clamps provided for magazine alignment
  • Pneumatic pusher’s pressure regulated
  • Manually adjustable pusher position
  • Threshold system provided
  • Additional magazines buffering capacity available upon request
  • Servo motor controlled width adjustment
  • Programmable product setting
  • Industry 4.0 ready
  • OPC UA ready
  • CANOpen communication ready


The NTA Single Magazine Loader is used to load PCB to downstream machine. The attached pusher will push the PCB to downstream machine and then the lifter will index to the next available slot. This machine is specially recommended for High Mix Low Volume production line.


Model No.NTA0610SM
Machine Dimension (mm)
L x W x H
1260 x 1190 x 1700 mm
Fixed Point to Front
Dimension (X)
405 mm
200 kg
Model No.NTA0610SXL
Machine Dimension (mm)
L x W x H
1560 x 1610 x 1700 mm
Fixed Point to Front
Dimension (X)
405 mm
300 kg
