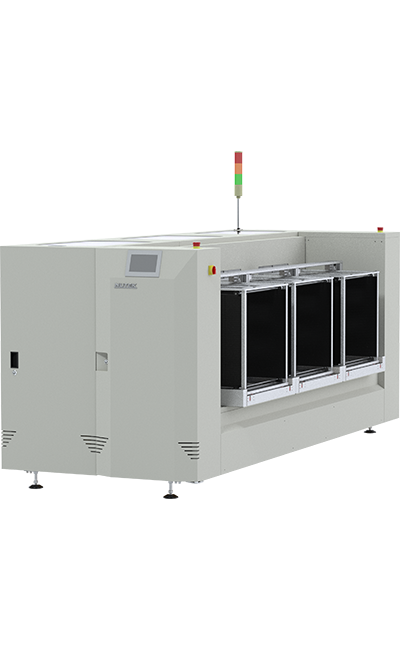

NTA Triple Magazine Line Unloader (AGV or AIV ready)


  • 7” touchscreen panel
  • Sturdy and stable design
  • Magazine alignment by upper clamping
  • Stationary magazine platform enables loading/unloading by AGV/AIV
  • Integrated servo motor driven lifting and traversing conveyor
  • Servo motor driven width adjustable input conveyor
  • Pneumatic pusher’s pressure regulated
  • Manually adjustable pusher position
  • Pneumatic controlled shutter between magazine lifter and shuttle conveyor
  • Magazine’s capacity threshold signal
  • Good/Bad board separation function
  • Programmable magazine and product parameter
  • User management function allow user level access control
  • Ethernet port for network interface
  • Towerlight display for machine status
  • Industry 4.0 ready
  • OPC UA ready
  • CANOpen communication ready


The Triple Magazine Line Unloader (AGV/AIV ready) unload PCB from upstream machine. The shuttle conveyor receives PCB from upstream machine and a pusher cylinder pushes the PCB into the magazine. It can be used for good or bad board separation function also. This machine is able to work with an AGV/AIV to load & unload magazines and configurable for Dual Lane production line.

Product Video


Model No.NTA0731UM
Machine Dimension (mm)
L x W x H
1170 x 2415 x 1330 mm
Fixed Point to Front
Dimension (X)
500 mm
780 kg
Model No.NTA0731UXL
Machine Dimension (mm)
L x W x H
1230 x 3245 x 1330 mm
Fixed Point to Front
Dimension (X)
600 mm
960 kg
