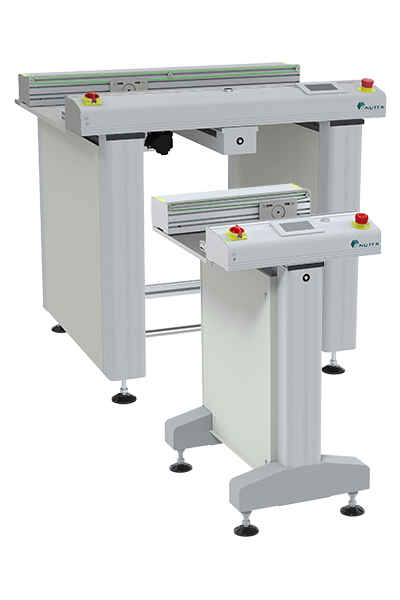

The NTA Inspection Conveyor is used as a visual inspection station between SMD machines. Upon completion of inspection, the operator will press the ‘Release’ push button to transfer the machine to downstream machine.
| Model No. | NTA0510M-500 |
| Size | M |
| Machine Dimension (mm) L x W x H | 500 x 660 x 980 mm |
| Fixed Point to Front Dimension (X) | 177 mm |
| Weight (Approximately) | 60 kg |
| Model No. | NTA0510XL-500 |
| Size | XL |
| Machine Dimension (mm) L x W x H | 500 x 870 x 980 mm |
| Fixed Point to Front Dimension (X) | 177 mm |
| Weight (Approximately) | 90 kg |
| Model No. | NTA0510M-1000 |
| Size | M |
| Machine Dimension (mm) L x W x H | 1000 x 660 x 980 mm |
| Fixed Point to Front Dimension (X) | 177 mm |
| Weight (Approximately) | 70 kg |
| Model No. | NTA0510XL-1000 |
| Size | XL |
| Machine Dimension (mm) L x W x H | 1000 x 870 x 980 mm |
| Fixed Point to Front Dimension (X) | 177 mm |
| Weight (Approximately) | 100 kg |
