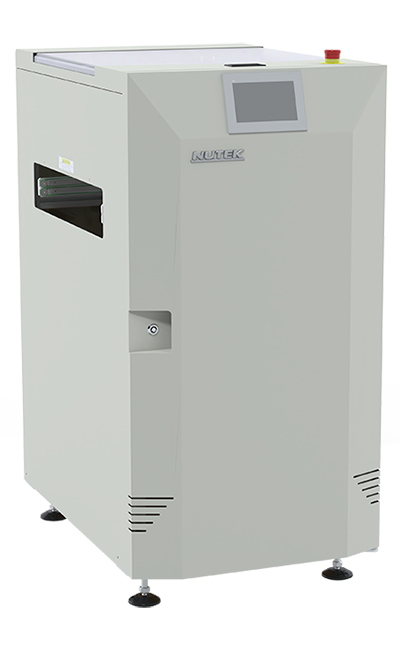

NTA PCB Inverter

Features

Equipped with built-in torque limiter to ensure highest level of safety
‘Top safety cover’ can be opened for easy access to hardware during maintenance
7” touchscreen panel
Smooth and precise inverting motion
Subsequent inversions continue from the last unloading position (short cycle time)
Small machine footprint
Servo motor controlled width adjustment
Programmable product setting
Industry 4.0 ready
OPC UA ready
CANOpen communication ready

Descriptions

The NTA PCB Inverter is used to invert a PCB 180°. It is specially useful in a ‘double-sided’ process.

Product Video

Specification

Model No.	Size	Machine Dimension (mm) L x W x H	Fixed Point to Front Dimension (X)	Weight (Approximately)
NTA0310IM	M	500 x 820 x 1330 mm	256 mm	110 kg
NTA0310IXL	XL	653 x 1060 x 1330 mm	256 mm	130 kg

Model No.	NTA0310IM
Size	M
Machine Dimension (mm) L x W x H	500 x 820 x 1330 mm
Fixed Point to Front Dimension (X)	256 mm
Weight (Approximately)	110 kg

Model No.	NTA0310IXL
Size	XL
Machine Dimension (mm) L x W x H	653 x 1060 x 1330 mm
Fixed Point to Front Dimension (X)	256 mm
Weight (Approximately)	130 kg
