NTA Turn Conveyor

Features

  • Equipped with built-in torque limiter to ensure highest level of safety
  • ‘Top safety cover’ can be opened for easy access to hardware during maintenance
  • 7” touchscreen panel
  • Smooth and precise rotation
  • Transfer gap between conveyors is minimised
  • PCB traffic flows can be customised
  • Servo motor controlled width adjustment
  • Programmable product setting
  • Industry 4.0 ready
  • OPC UA ready
  • CANOpen communication ready

Descriptions

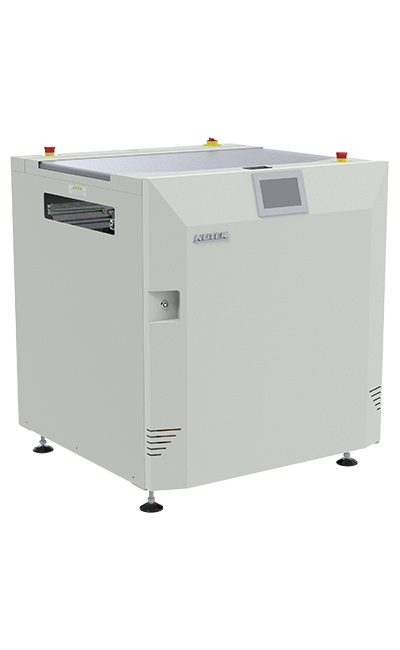

The NTA Turn Conveyor/Diverter is used to redirect PCB flow in a production line. It is able to turn either clockwise or counter-clockwise.

Specification

Model No.NTA091M
SizeM
Machine Dimension (mm)
L x W x H
795 x 795 x 1330 mm
Fixed Point to Front
Dimension (X)
272.5 mm
Weight
(Approximately)
160 kg
Model No.NTA091XL
SizeXL
Machine Dimension (mm)
L x W x H
975 x 975 x 1330 mm
Fixed Point to Front
Dimension (X)
257.5 mm
Weight
(Approximately)
200 kg
