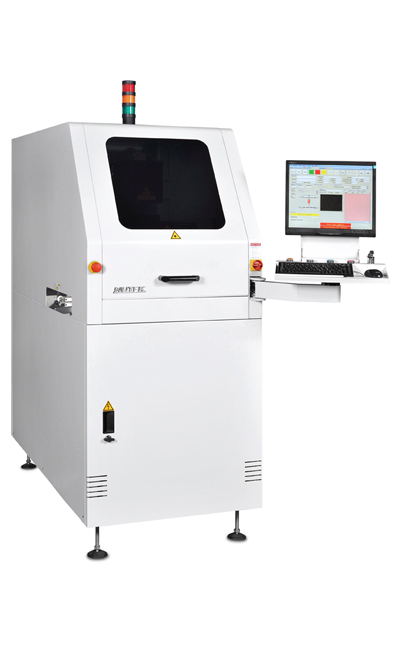

Laser Marking Cell Series 5

Features

  • 10 Watt CO2 (Class 4)
  • Class 1 laser protected housing
  • Air cooling system
  • Fume extraction device
  • User friendly software
  • Short cycle time
  • Selectable by-pass operation
  • Automatic width adjustment conveyor
  • PCB side clamping
  • Short product change-over time
  • Industrial PC & 21.5” LCD monitor
  • Integrated inverting unit for double-sided marking (Optional)
  • Barcode scanner or camera for readability check (Optional)
  • SMEMA compatible

Description

This unit is used to mark text, barcode, 2D code & graphic onto PCBs.

Product Video

Specifications

Model No.NTM5610-X
SizeXL
Machine Dimension (mm)
L x W x H
850 x 1558 x 1752 mm
Fixed Point to Front
Dimension (X)
236 mm
Weight
(Approximately)
640 kg
