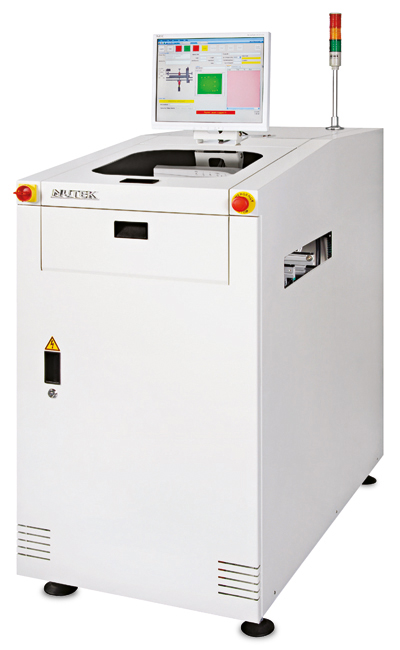

Basic Laser Marking Cell

Features

  • 10 Watt CO2 (Class 4)
  • Class 1 laser protected housing
  • Air cooling system
  • Fume extraction device
  • User friendly software
  • Digitally controlled linear axis for X & Y movement
  • Selectable by-pass operation
  • Automatic width adjustment conveyor
  • PCB side clamping
  • Short product change-over time
  • Barcode scanner for readability check
  • Industrial PC & 21.5” LCD monitor
  • SMEMA compatible

Description

This unit is used to mark text, barcode, 2D code & graphic onto PCBs.

Specifications

Model No.NTM5300-X
SizeXL
Machine Dimension (mm)
L x W x H		700 x 1613 x 1381 mm
Fixed Point to Front
Dimension (X)		234 mm
Weight
(Approximately)		425 kg
