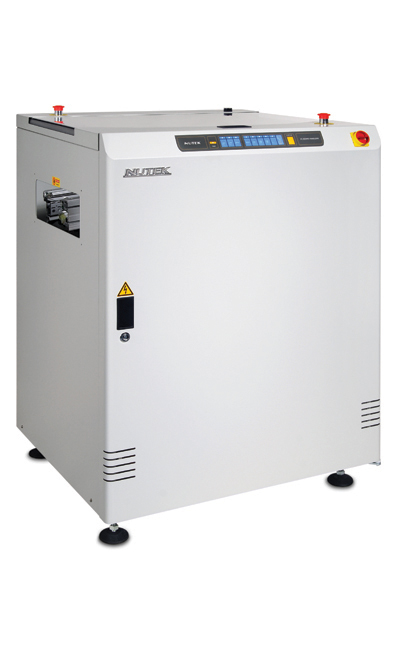

Turn Conveyor/Diverter

Features

Equipped with built-in torque limiter to ensure highest level of safety
‘Top safety cover’ can be opened for easy access to hardware during maintenance
User friendly ‘soft touch’ LED membrane control panel
Smooth and precise rotation
Transfer gap between conveyors is minimised
PCB traffic flows can be customised
Smooth and parallel width adjustment (leadscrew)
SMEMA compatible

Description

This unit is used to redirect PCBs in a production line.

Product Video

Specifications

Model No.	Size	Machine Dimension (mm) L x W x H	Fixed Point to Front Dimension (X)	Weight (Approximately)
NTM1100LM	M	795 x 795 x 1100 mm	272 mm	160 kg
NTM1100LL	L	875 x 875 x 1100 mm	234 mm	170 kg
NTM1100IM	M	795 x 795 x 1100 mm	272 mm	160 kg
NTM1100IL	L	875 x 875 x 1100 mm	234 mm	170 kg
NTM1100TM	M	795 x 795 x 1100 mm	272 mm	160 kg
NTM1100TL	L	875 x 875 x 1100 mm	234 mm	170 kg
NTM1100XM	M	795 x 795 x 1100 mm	272 mm	160 kg
NTM1100XL	L	875 x 875 x 1100 mm	234 mm	170 kg

Model No.	NTM1100LM
Size	M
Machine Dimension (mm) L x W x H	795 x 795 x 1100 mm
Fixed Point to Front Dimension (X)	272 mm
Weight (Approximately)	160 kg

Model No.	NTM1100LL
Size	L
Machine Dimension (mm) L x W x H	875 x 875 x 1100 mm
Fixed Point to Front Dimension (X)	234 mm
Weight (Approximately)	170 kg

Model No.	NTM1100IM
Size	M
Machine Dimension (mm) L x W x H	795 x 795 x 1100 mm
Fixed Point to Front Dimension (X)	272 mm
Weight (Approximately)	160 kg

Model No.	NTM1100IL
Size	L
Machine Dimension (mm) L x W x H	875 x 875 x 1100 mm
Fixed Point to Front Dimension (X)	234 mm
Weight (Approximately)	170 kg

Model No.	NTM1100TM
Size	M
Machine Dimension (mm) L x W x H	795 x 795 x 1100 mm
Fixed Point to Front Dimension (X)	272 mm
Weight (Approximately)	160 kg

Model No.	NTM1100TL
Size	L
Machine Dimension (mm) L x W x H	875 x 875 x 1100 mm
Fixed Point to Front Dimension (X)	234 mm
Weight (Approximately)	170 kg

Model No.	NTM1100XM
Size	M
Machine Dimension (mm) L x W x H	795 x 795 x 1100 mm
Fixed Point to Front Dimension (X)	272 mm
Weight (Approximately)	160 kg

Model No.	NTM1100XL
Size	L
Machine Dimension (mm) L x W x H	875 x 875 x 1100 mm
Fixed Point to Front Dimension (X)	234 mm
Weight (Approximately)	170 kg
