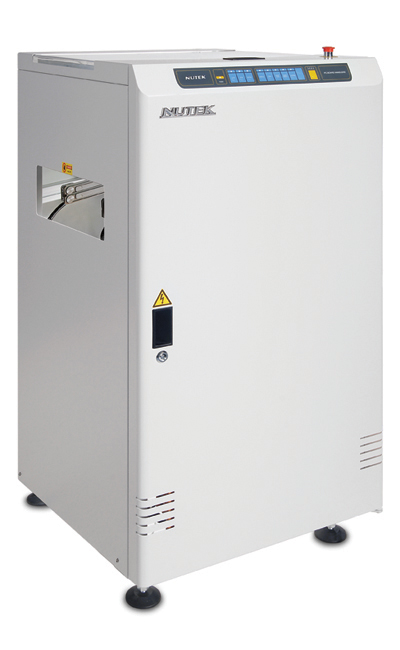

PCB Inverter

Features

Equipped with built-in torque limiter to ensure highest level of safety
‘Top safety cover’ can be opened for easy access to hardware during maintenance
User friendly ‘soft touch’ LED membrane control panel
Smooth and precise inverting motion
Subsequent inversions continue from the last unloading position (short cycle time)
Small machine footprint
SMEMA compatible

Description

The PCB Inverter is used to invert PCBs (180°) for “double-sided” process.

Product Video

Specifications

Model No.	Size	Machine Dimension (mm) L x W x H	Fixed Point to Front Dimension (X)	Weight (Approximately)
NTM0300-M	M	500 x 730 x 1330 mm	234 mm	110 kg
NTM0300-L	L	653 x 870 x 1330 mm	234 mm	120 kg

Model No.	NTM0300-M
Size	M
Machine Dimension (mm) L x W x H	500 x 730 x 1330 mm
Fixed Point to Front Dimension (X)	234 mm
Weight (Approximately)	110 kg

Model No.	NTM0300-L
Size	L
Machine Dimension (mm) L x W x H	653 x 870 x 1330 mm
Fixed Point to Front Dimension (X)	234 mm
Weight (Approximately)	120 kg
