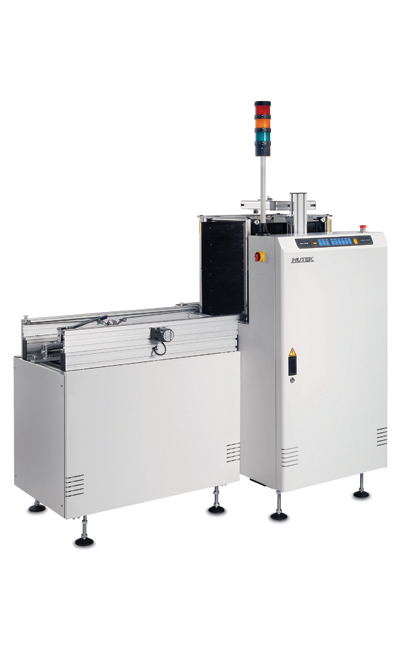

Multi Function Magazine-type Buffer

Features

User friendly ‘soft touch’ LED membrane control panel
First In First Out (FIFO), Last In First Out (LIFO), loader, unloader, reject stock and pass through operating modes
Fast, smooth and precise indexing (frequency inverter controller)
Pneumatic clamps provided for magazine alignment
Pneumatic pusher with regulated pressure
Buffer’s capacity threshold signal
Additional magazines buffering capacity available upon request
SMEMA compatible

Description

The Multi Function Magazine-type Buffer is used to buffer PCBs in a magazine.

Product Video

Specifications

Model No.	Size	Machine Dimension (mm) L x W x H	Fixed Point to Front Dimension (X)	Weight (Approximately)
NTM0600-M	M	1260 x 1165 x 1330 mm	380 mm	200 kg
NTM0600-L	L	1560 x 1455 x 1330 mm	380 mm	250 kg

Model No.	NTM0600-M
Size	M
Machine Dimension (mm) L x W x H	1260 x 1165 x 1330 mm
Fixed Point to Front Dimension (X)	380 mm
Weight (Approximately)	200 kg

Model No.	NTM0600-L
Size	L
Machine Dimension (mm) L x W x H	1560 x 1455 x 1330 mm
Fixed Point to Front Dimension (X)	380 mm
Weight (Approximately)	250 kg
