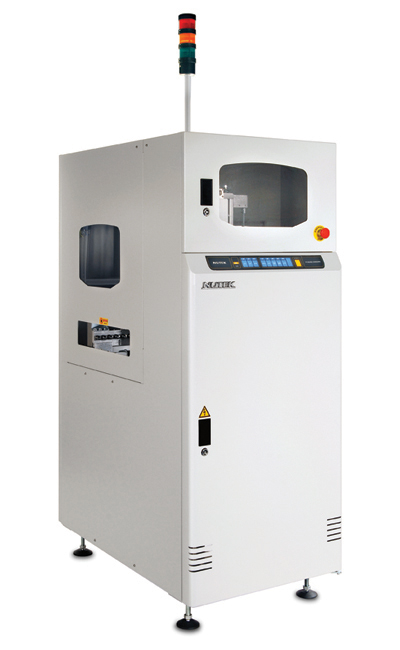

Multi Function Cage-type Buffer

Features

User friendly ‘soft touch’ LED membrane control panel
First In First Out (FIFO), Last In First Out (LIFO) and pass through operating modes
Flexible repositioning of ‘fingers’ (support bars) to accommodate jagged edge PCBs
Durable rollers as conveying medium (no replacement of belts needed)
Fast, smooth and precise indexing (frequency inverter controller)
Threshold system provided
Smooth and parallel width adjustment (leadscrew)
Small machine footprint
SMEMA compatible

Description

The Multi Function Cage-type Buffer is used to buffer PCBs on multi levels of metal support bars.

Product Video

Specifications

Model No.	Size	Machine Dimension (mm) L x W x H	Fixed Point to Front Dimension (X)	Weight (Approximately)
NTM1400-M	M	500 x 980 x 1700 mm	425 mm	210 kg
NTM1400-L	L	653 x 1080 x 1700 mm	425 mm	240 kg

Model No.	NTM1400-M
Size	M
Machine Dimension (mm) L x W x H	500 x 980 x 1700 mm
Fixed Point to Front Dimension (X)	425 mm
Weight (Approximately)	210 kg

Model No.	NTM1400-L
Size	L
Machine Dimension (mm) L x W x H	653 x 1080 x 1700 mm
Fixed Point to Front Dimension (X)	425 mm
Weight (Approximately)	240 kg
