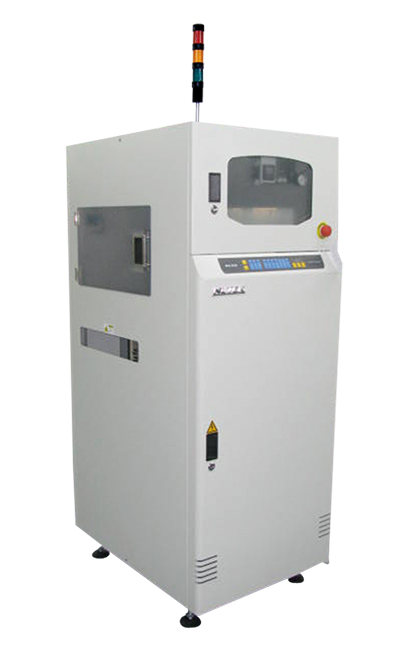

Multi Function Belt-type Buffer

Features

User friendly ‘soft touch’ LED membrane control panel
First In First Out (FIFO), Last In First Out (LIFO) and pass -through operating modes
Fast, smooth and precise indexing (frequency inverter controller)
Buffer’s capacity threshold signal
Smooth and parallel width adjustment (leadscrew)
Small machine footprint
SMEMA compatible

Description

The Multi Function Belt-type Buffer is used to buffer PCBs on multi levels of belt segments.

Product Video

Specifications

Model No.	Size	Machine Dimension (mm) L x W x H	Fixed Point to Front Dimension (X)	Weight (Approximately)
NTM1400-BM	M	500 x 1050 x 1700 mm	434 mm	210 kg
NTM1400-BL	L	653 x 1210 x 1700 mm	410 mm	380 kg

Model No.	NTM1400-BM
Size	M
Machine Dimension (mm) L x W x H	500 x 1050 x 1700 mm
Fixed Point to Front Dimension (X)	434 mm
Weight (Approximately)	210 kg

Model No.	NTM1400-BL
Size	L
Machine Dimension (mm) L x W x H	653 x 1210 x 1700 mm
Fixed Point to Front Dimension (X)	410 mm
Weight (Approximately)	380 kg
