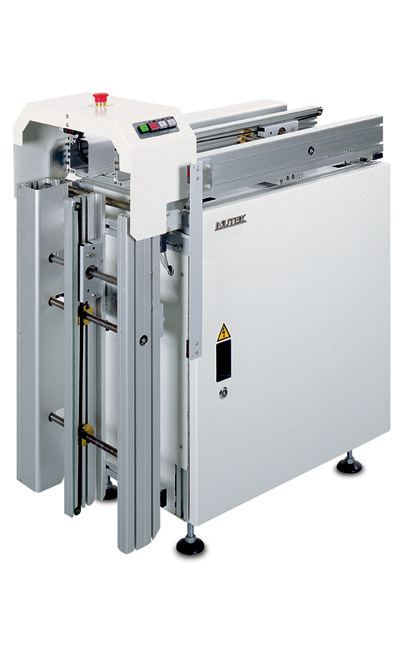

Lowering Gate Conveyor

Features

  • 600 mm passage way or specify
  • Lowering and lifting of gate conveyor (push buttons control)
  • Safety sensor installed to enhance safety
  • Smooth and parallel width adjustment (leadscrew)
  • SMEMA compatible

Description

This unit is used when a passage way is required in a production line (semi automatic).

Specifications

Model No.NTM1600-M
SizeM
Machine Dimension (mm)
L x W x H
1500 x 570 x 1060 mm
Fixed Point to Front
Dimension (X)
75 mm
Weight
(Approximately)
115 kg
Model No.NTM1600-L
SizeL
Machine Dimension (mm)
L x W x H
1500 x 727 x 1060 mm
Fixed Point to Front
Dimension (X)
75 mm
Weight
(Approximately)
135 kg
