Home
Products
Standard

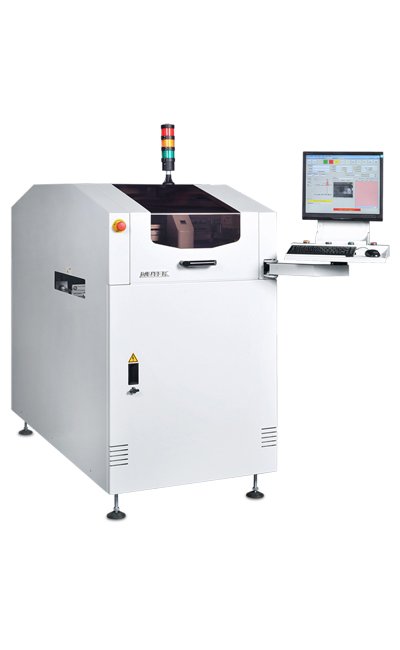

Laser Marking Cell Series 3
Features
10 Watt CO
2
(Class 4)
Class 1 laser protected housing
Air cooling system
Fume extraction device
User friendly software
Digitally controlled linear axis for x & y movements
Selectable by-pass operation
Automatic width adjustment conveyor
PCB side clamping
PCB lifting system for constant focal point
Short product change-over time
Barcode scanner or camera for readability check
Industrial PC & 21.5” LCD monitor
Integrated inverting unit for double-sided marking (Optional)
SMEMA compatible
Description
This unit is used to mark text, barcode, 2D code & graphic onto PCBs.
Product Video
Specifications
Model No.
Size
Machine Dimension (mm)
L x W x H
Fixed Point to Front
Dimension (X)
Weight
(Approximately)
NTM5510-X
XL
850 x 1645 x 1380 mm
330 mm
700 kg
Model No.
NTM5510-X
Size
XL
Machine Dimension (mm)
L x W x H
850 x 1645 x 1380 mm
Fixed Point to Front
Dimension (X)
330 mm
Weight
(Approximately)
700 kg
