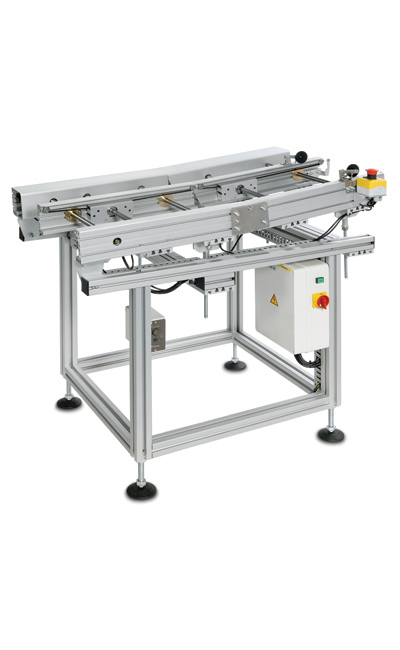

Infeed Conveyor

Features

  • Robust design
  • Two belt segments
  • Adjustable inclined angle (4° - 7°) or specify
  • Variable speed control to synchronise with wave soldering machine
  • PLC controlled (optional)
  • SMEMA compatible

Description

This unit is used for transferring of PCBs/pallets into the soldering machine.

Specifications

Model No.NTM2300IM
SizeM
Machine Dimension (mm)
L x W x H
1000 x 535 x H1, H2 (specify upon order)
Fixed Point to Front
Dimension (X)
50 mm
Weight
(Approximately)
60 kg
Model No.NTM2300IL
SizeL
Machine Dimension (mm)
L x W x H
1000 x 690 x H1, H2 (specify upon order)
Fixed Point to Front
Dimension (X)
50 mm
Weight
(Approximately)
70 kg
