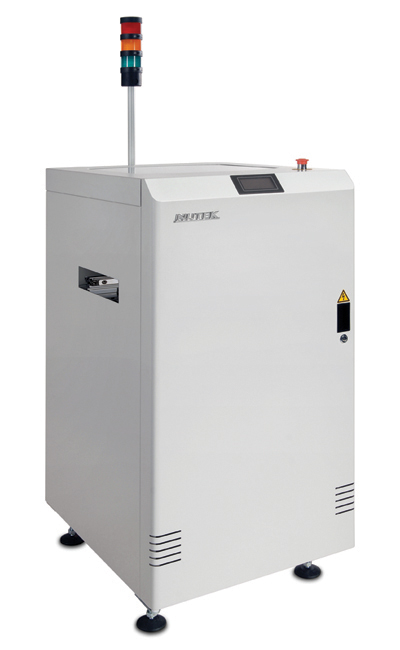

In-line PCB Cleaning Machine

Features

User friendly touch screen panel
Preset PCB counter and warning alarm will sound as reminder to change adhesive rolls
Double side cleaning (selectable)
Static elimination (double sided)
Easy access to adhesive rolls
Internal conveyor system to buffer board before cleaning
Smooth and parallel width adjustment (leadscrew)
SMEMA compatible

Description

This unit is used for removing dust, particles, glass fiber & etc on bare PCBs surface.

Specifications

Model No.	Size	Machine Dimension (mm) L x W x H	Fixed Point to Front Dimension (X)	Weight (Approximately)
NTM5000-M	M	653 x 800 x 1330 mm	220 mm	180 kg
NTM5000-L	L	750 x 1050 x 1330 mm	220 mm	200 kg

Model No.	NTM5000-M
Size	M
Machine Dimension (mm) L x W x H	653 x 800 x 1330 mm
Fixed Point to Front Dimension (X)	220 mm
Weight (Approximately)	180 kg

Model No.	NTM5000-L
Size	L
Machine Dimension (mm) L x W x H	750 x 1050 x 1330 mm
Fixed Point to Front Dimension (X)	220 mm
Weight (Approximately)	200 kg
