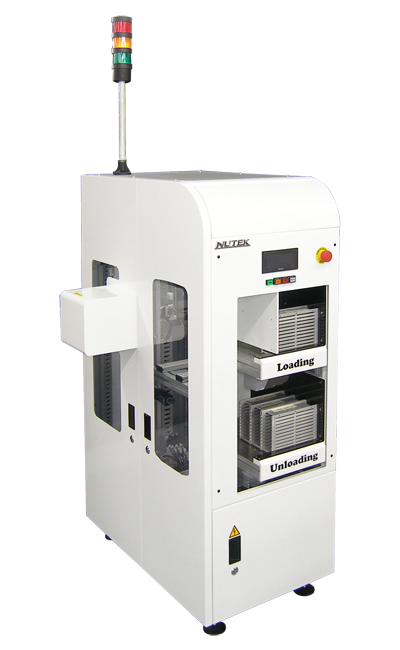

High Speed Mini Loader
This unit is used for loading of substrates, leadframes or carriers.
Features
- Cleanroom 10000 (ISO 7)
- Applicable to various substrates, leadframes or carriers
- ‘Servo control’ lifting motion
- High speed and precise indexing
- Machine size depends on the type of magazine used
- Programmable magazine parameter settings
- Stainless steel magazine guide
- Pneumatic pusher with regulated pressure
- Easy loading or unloading of magazines
- User friendly touch screen panel
- SMEMA compatible
- AIV/AMR integration (Optional)
- OHT/AMHS integration (Optional)
- SECS/GEM communication (Optional)
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| NTM4412LM | M | 830 x 990 x 1560 mm | 530 mm | 210 kg |
