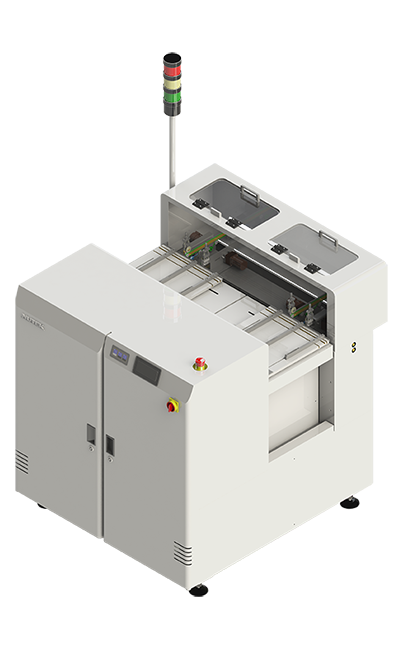

Dual Lane Advanced Platform Loader

Features

Touch screen panel enables swift adjustment for various types of magazines in operation
Multi-magazine type manual loading (quantity depends on dimension of magazine)
Stores up to 10 different types of magazine dimensions
Both lanes can operate independently
Suitable for ‘high-mix’, ‘low-volume’ operations
Servo motor drive for precise indexing
Pneumatic pusher’s pressure regulated
SMEMA compatible

Description

The Dual Lane Advanced Platform Loader is used for loading of substrates, leadframes or carriers in dual lane production line.

Specifications

Model No.	Size	Machine Dimension (mm) L x W x H	Fixed Point to Front Dimension (X)	Weight (Approximately)
NTM4410DLM	M	1175 x 1080 x 1743	X1 = 149, X2 = 164 mm	250 kg

Model No.	NTM4410DLM
Size	M
Machine Dimension (mm) L x W x H	1175 x 1080 x 1743
Fixed Point to Front Dimension (X)	X1 = 149, X2 = 164 mm
Weight (Approximately)	250 kg
