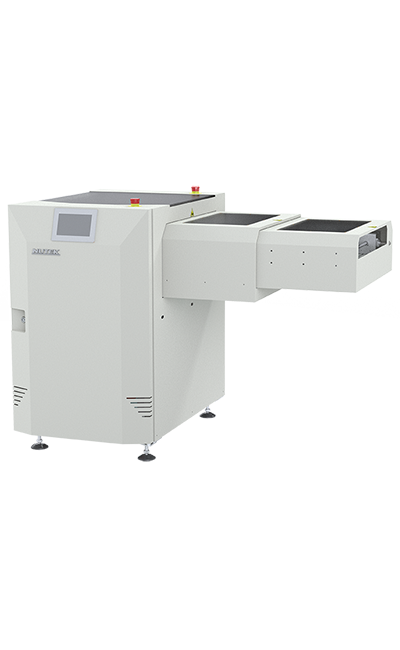

NTA Telescopic Gate Conveyor (Normally Opened)

Features

  • 7” touchscreen panel
  • Passage way ‘Normally Opened’ (845 mm)
  • Swift and smooth retraction/extension of conveyor (frequency inverter controller)
  • Safety retro-reflective sensor installed to enhance safety
  • Servo motor controlled width adjustment
  • Programmable product setting
  • Industry 4.0 ready
  • OPC UA ready
  • CANOpen communication ready

Descriptions

The NTA Telescopic Gate Conveyor (Normally Opened) is used when a passage way is required in a production line. When a PCB is transferred to the NTA Telescopic Gate Conveyor, it will extend the conveyor to link to the downstream machine. The NTA Telescopic Gate Conveyor is always retracted to create a passage way.

Specification

Model No.NTA0451TGM
SizeM
Machine Dimension (mm)
L x W x H
1500 x 795 x 1130 mm
Fixed Point to Front
Dimension (X)
234 mm
Weight
(Approximately)
230 kg
Model No.NTA0451TGXL
SizeXL
Machine Dimension (mm)
L x W x H
1500 x 1030 x 1130 mm
Fixed Point to Front
Dimension (X)
234 mm
Weight
(Approximately)
280 kg
