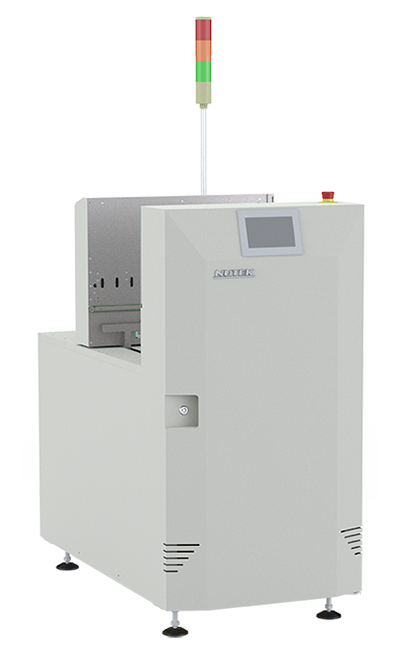

The NTA push-up stacker is used to stack up bare board after laser marking or labelling process. The conveyor receives PCB from upstream machine and then lifts it up into a stack.
| Model No. | NTA0230PSM |
| Size | M |
| Machine Dimension (mm) L x W x H | 500 x 1180 x 1330 mm |
| Fixed Point to Front Dimension (X) | 247 mm |
| Weight (Approximately) | 120 kg |
| Model No. | NTA0230PSXL |
| Size | XL |
| Machine Dimension (mm) L x W x H | 653 x 1230 x 1330 mm |
| Fixed Point to Front Dimension (X) | 247 mm |
| Weight (Approximately) | 180 kg |
