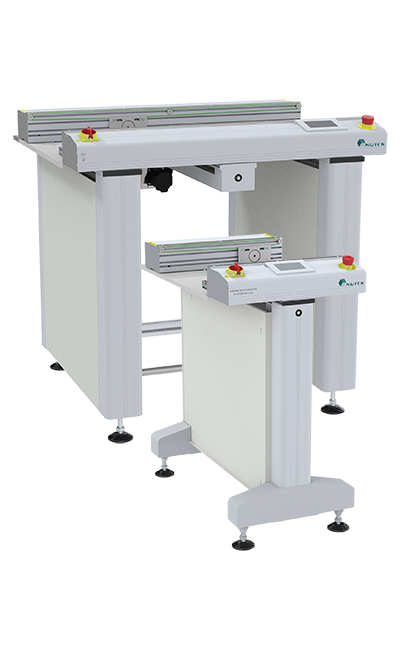

NTA Linking Conveyor

Features

4.3” touchscreen panel
Modular design
Stability enhanced by ‘robust design’
Laser carved stainless steel side guides for superior quality and durability
Ergonomically designed arm rest
Servo motor controlled conveyor width adjustment
Multi-zone concept available upon request
Different lengths available upon request
Programmable product setting
Patented (SG Patent No.: 91261)
Industry 4.0 ready
OPC UA ready
CANOpen communication ready

Descriptions

The NTA Linking Conveyor is used to link between SMD machines or board handling unit.

Specification

Model No.	Size	Machine Dimension (mm) L x W x H	Fixed Point to Front Dimension (X)	Weight (Approximately)
NTA0410M-500	M	500 x 660 x 980 mm	177 mm	60 kg
NTA0410XL-500	XL	500 x 870 x 980 mm	177 mm	90 kg
NTA0410M-1000	M	1000 x 660 x 980 mm	177 mm	70 kg
NTA0410XL-1000	XL	1000 x 870 x 980 mm	177 mm	100 kg

Model No.	NTA0410M-500
Size	M
Machine Dimension (mm) L x W x H	500 x 660 x 980 mm
Fixed Point to Front Dimension (X)	177 mm
Weight (Approximately)	60 kg

Model No.	NTA0410XL-500
Size	XL
Machine Dimension (mm) L x W x H	500 x 870 x 980 mm
Fixed Point to Front Dimension (X)	177 mm
Weight (Approximately)	90 kg

Model No.	NTA0410M-1000
Size	M
Machine Dimension (mm) L x W x H	1000 x 660 x 980 mm
Fixed Point to Front Dimension (X)	177 mm
Weight (Approximately)	70 kg

Model No.	NTA0410XL-1000
Size	XL
Machine Dimension (mm) L x W x H	1000 x 870 x 980 mm
Fixed Point to Front Dimension (X)	177 mm
Weight (Approximately)	100 kg
