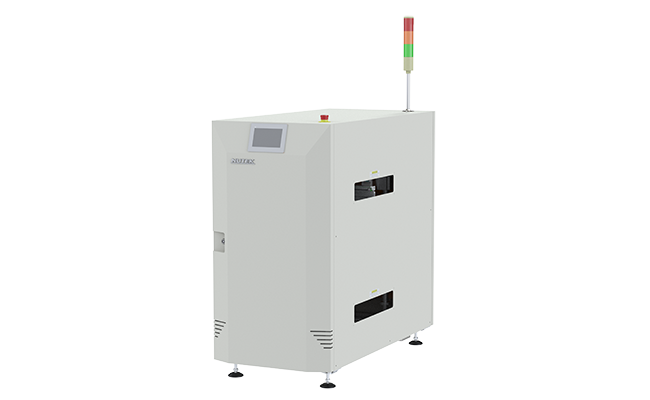

NTA Lifter

Features

  • 7” touchscreen panel
  • Servo motor controlled width adjustment
  • Frequency inverter controlled lifting motion
  • Programmable product setting
  • Industry 4.0 ready
  • OPC UA ready
  • CANOpen communication ready

Descriptions

The NTA Lifter is used to redirect PCBs flow in a Dual layer production line. The lifter will lift or lower the conveyor according to upstream or downstream machine request.

Specification

Model No.NTA0340LM
SizeM
Machine Dimension (mm)
L x W x H
500 x 1175 x 1330 mm
Fixed Point to Front
Dimension (X)
320 mm
Weight
(Approximately)
160 kg
Model No.NTA0340LXL
SizeXL
Machine Dimension (mm)
L x W x H
653 x 1385 x 1330 mm
Fixed Point to Front
Dimension (X)
320 mm
Weight
(Approximately)
200 kg
