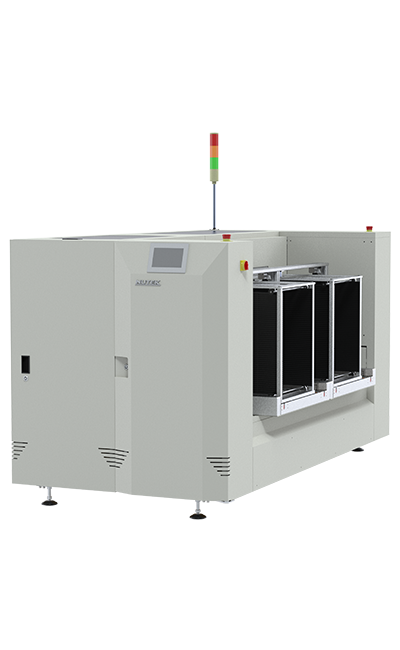

NTA Dual Magazine Line Unloader (AGV Ready)

Features

  • 7” touchscreen panel
  • Sturdy and stable design
  • Magazine alignment by upper clamping
  • Servo motor driven lifter enable precise indexing
  • Servo motor driven traversing movement
  • Servo motor driven width adjustable input conveyor
  • Pneumatic pusher’s pressure regulated
  • Manually adjustable pusher position
  • Pneumatic controlled shutter between Magazine Lifter and Traverser
  • Oven Info Threshold signal
  • Good/Bad board separation function
  • Programmable magazine and product setting
  • User management function allow user level access control
  • Ethernet port for network interface
  • Towerlight display for machine status
  • Industry 4.0 ready
  • OPC UA ready
  • CANOpen communication ready

Descriptions

The NTA Dual Magazine Unloader (AGC ready) unloads PCB from upstream machine into an empty magazine. The shuttle conveyor receives PCB from upstream machine. and a pusher cylinder pushes the PCB into the magazine. It can be used for good or bad board separation function also. This machine is specially suitable to be used in Dual Lane production line and is able to work with an AGV to load & unload magazines.

Specification

Model No.NTA0721UM
SizeM
Machine Dimension (mm)
L x W x H
1220 x 1700 x 1330 mm
Fixed Point to Front
Dimension (X)
535 mm
Weight
(Approximately)
330 kg
Model No.NTA0721UXL
SizeXL
Machine Dimension (mm)
L x W x H
1220 x 2335 x 1330 mm
Fixed Point to Front
Dimension (X)
620 mm
Weight
(Approximately)
480 kg
