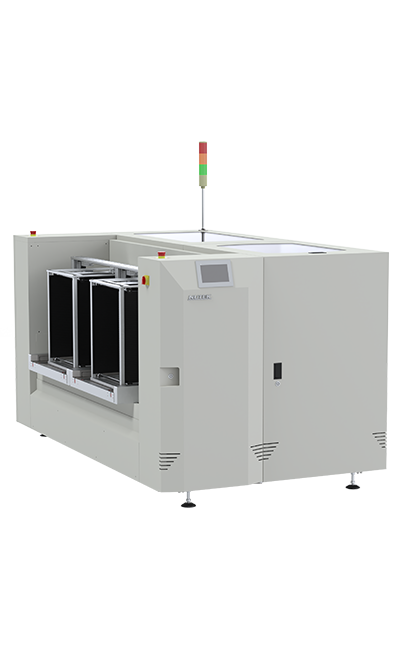

NTA Dual Magazine Line Loader (AGV Ready)

Features

  • 7” touchscreen panel
  • Sturdy and stable design
  • Magazine alignment by upper clamping
  • Stationary magazine platform enable loading/unloading by AGV
  • Integrated servo motor driven lifting and traversing conveyor
  • Servo motor driven width adjustable output conveyor
  • Pneumatic puller’s pressure regulated
  • Manually adjustable puller position
  • Pneumatic controlled shutter door between magazine lifter and traverser
  • Programmable magazine and product setting
  • User management function allow user level access control
  • Ethernet port for network interface
  • Towerlight display for machine status
  • Industry 4.0 ready
  • OPC UA ready
  • CANOpen communication ready

Descriptions

The NTA Dual Magazine Loader loads PCB to downstream machine. The shuttle conveyor indexes to the transfer slot, the PCB is then being pulled out from the magazine by a puller in the shuttle conveyor. The shuttle conveyor moves to the transfer height of the downstream machine and transfers the PCB downstream. This machine is specially suitable to be used in Dual Lane production line and is able to work with an AGV to load & unload magazines.

Specification

Model No.NTA0721LM
SizeM
Machine Dimension (mm)
L x W x H
1420 x 1700 x 1330 mm
Fixed Point to Front
Dimension (X)
535 mm
Weight
(Approximately)
330 kg
Model No.NTA0721LXL
SizeXL
Machine Dimension (mm)
L x W x H
1420 x 2335 x 1330 mm
Fixed Point to Front
Dimension (X)
620 mm
Weight
(Approximately)
480 kg
