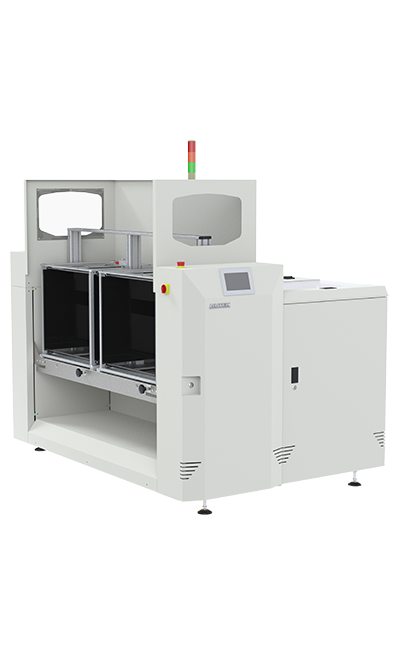

NTA Dual Magazine Line Loader


  • 7” touchscreen panel
  • Sturdy and stable design
  • Magazine alignment by upper clamping
  • Servo motor driven lifter enable precise indexing
  • Servo motor driven traversing movement
  • Servo motor driven width adjustable output conveyor
  • Pneumatic puller’s pressure regulated
  • Manually adjustable puller position
  • Pneumatic controlled shutter between Magazine Lifter and Traverser
  • Programmable magazine and product setting
  • User management function allow user level access control
  • Ethernet port for network interface
  • Towerlight display for machine status
  • Industry 4.0 ready
  • OPC UA ready
  • CANOpen communication ready


The NTA Dual Magazine Loader loads PCB from the full magazine to downstream machine. The lifter indexes the full magazine to transfer height, the PCB is then pulled out from the magazine by a puller in the shuttle conveyor. The shuttle conveyor moves to the position of the downstream machine and transfer the PCB downstream. This machine is specially suitable to be used in Dual Lane production line.


Model No.NTA0720LM
Machine Dimension (mm)
L x W x H
1080 x 1370 x 1750 mm
Fixed Point to Front
Dimension (X)
400 mm
330 kg
Model No.NTA0720LXL
Machine Dimension (mm)
L x W x H
1420 x 1990 x 1750 mm
Fixed Point to Front
Dimension (X)
400 mm
480 kg
