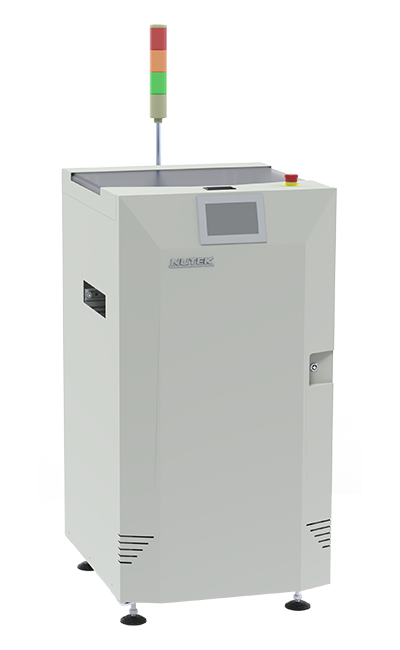

The NTA Cleaning Machine is used for removing dust, particles, glass fiber & etc. on bare PCBs surface. The PCB will move in between two adhesive elastomer rollers in which the contaminants will be transferred to the adhesive tape.

Features

• 7” touchscreen panel
• Towerlight display for machine status
• Preset PCB counter and warning alarm will sound as reminder to change adhesive rolls
• Top and bottom side cleaning (selectable)
• Static elimination using ioniser bars (double sided)
• Easy access to adhesive rolls
• Internal conveyor system to buffer board before cleaning
• Servo motor controlled width adjustment
• Programmable product setting
• Industry 4.0 ready
• OPC UA ready
• CANOpen communication ready
