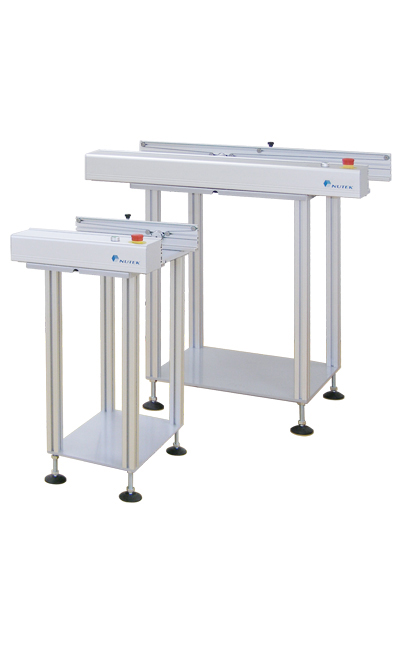

MFC Linking Conveyor

Features

Modular design
Stability enhanced by ‘robust design’
Ergonomically designed arm rest
Smooth and parallel width adjustment
Multi-zone concept available upon request
Different lengths available upon request
SMEMA compatible
Patented (SG Patent No: 91261)

Description

This unit is used to link between SMD machines or board handling units.

Specifications

Model No.	Size	Machine Dimension (mm) L x W x H	Fixed Point to Front Dimension (X)	Weight (Approximately)
MFC0401-M-500	M	500 x 475 x 985 mm	142 mm	30 kg
MFC0401-L-500	L	500 x 635 x 985 mm	142 mm	35 kg
MFC0401-M-1000	M	1000 x 475 x 985 mm	142 mm	50 kg
MFC0401-L-1000	L	1000 x 635 x 985 mm	142 mm	55 kg

Model No.	MFC0401-M-500
Size	M
Machine Dimension (mm) L x W x H	500 x 475 x 985 mm
Fixed Point to Front Dimension (X)	142 mm
Weight (Approximately)	30 kg

Model No.	MFC0401-L-500
Size	L
Machine Dimension (mm) L x W x H	500 x 635 x 985 mm
Fixed Point to Front Dimension (X)	142 mm
Weight (Approximately)	35 kg

Model No.	MFC0401-M-1000
Size	M
Machine Dimension (mm) L x W x H	1000 x 475 x 985 mm
Fixed Point to Front Dimension (X)	142 mm
Weight (Approximately)	50 kg

Model No.	MFC0401-L-1000
Size	L
Machine Dimension (mm) L x W x H	1000 x 635 x 985 mm
Fixed Point to Front Dimension (X)	142 mm
Weight (Approximately)	55 kg
