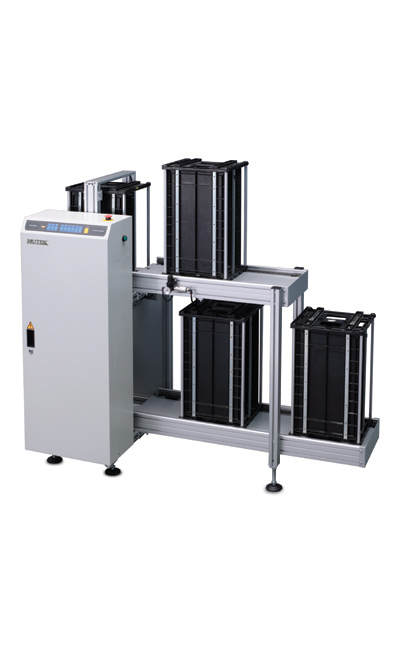

MFC Automatic Loader

Features

Sturdy and stable design
User friendly ‘soft touch’ LED membrane control panel
Pneumatic clamps provided for magazine alignment
Pneumatic pusher’s pressure regulated
High throughput with short magazine change-over time
SMEMA compatible

Description

This unit is used for loading of PCBs.

Specifications

Model No.	Size	Machine Dimension (mm) L x W x H	Fixed Point to Front Dimension (X)	Weight (Approximately)
MFC0100LM	M	1700 x 790 x 1330 mm	377 mm	145 kg
MFC0100LL	L	2480 x 940 x 1330 mm	388 mm	220 kg

Model No.	MFC0100LM
Size	M
Machine Dimension (mm) L x W x H	1700 x 790 x 1330 mm
Fixed Point to Front Dimension (X)	377 mm
Weight (Approximately)	145 kg

Model No.	MFC0100LL
Size	L
Machine Dimension (mm) L x W x H	2480 x 940 x 1330 mm
Fixed Point to Front Dimension (X)	388 mm
Weight (Approximately)	220 kg
