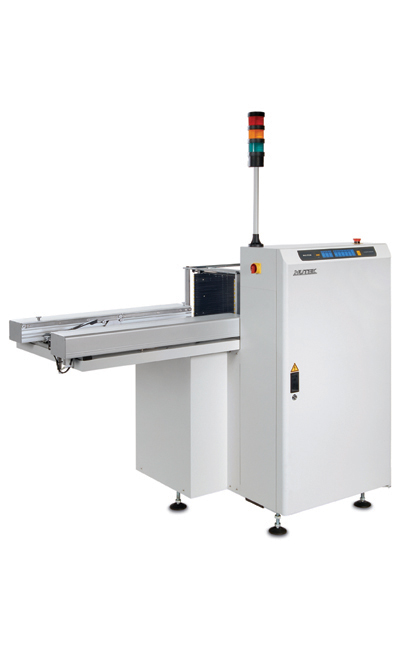

Basic Single Magazine Unloader

Features

User friendly ‘soft touch’ LED membrane control panel
Toggle lever clamps provided for magazine alignment
Adjustable pusher position
Pneumatic pusher’s pressure regulated
‘Threshold’ system provided
The ‘L’ model has an adjustable platform which can accommodate both ‘M’ and ‘L’ size magazines
SMEMA compatible

Description

This unit is used for unloading of PCBs from the production line.

Specifications

Model No.	Size	Machine Dimension (mm) L x W x H	Fixed Point to Front Dimension (X)	Weight (Approximately)
NTE0700UM	M	1200 x 845 x 1330 mm	452 mm	180 kg
NTE0700UL	L	1500 x 1005 x 1330 mm	452 mm	230 kg

Model No.	NTE0700UM
Size	M
Machine Dimension (mm) L x W x H	1200 x 845 x 1330 mm
Fixed Point to Front Dimension (X)	452 mm
Weight (Approximately)	180 kg

Model No.	NTE0700UL
Size	L
Machine Dimension (mm) L x W x H	1500 x 1005 x 1330 mm
Fixed Point to Front Dimension (X)	452 mm
Weight (Approximately)	230 kg
