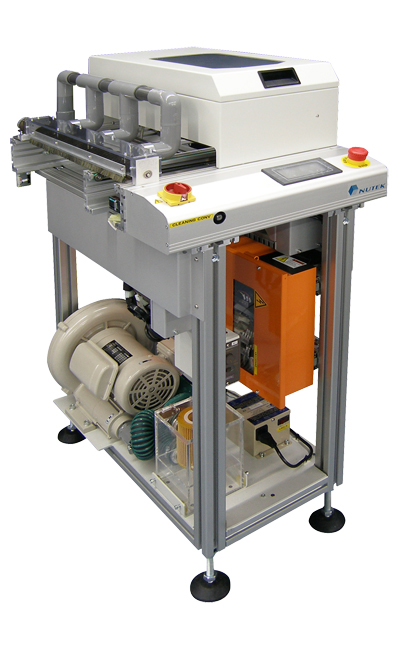

Vacuum Conveyor

Features

  • User friendly touch screen panel
  • Effective and user friendly cleaning solution
  • Single side cleaning
  • Static elimination and dust removal (vacuum)
  • Minimum maintenance of cleaning system
  • Smooth and parallel width adjustment (leadscrew)
  • Small machine footprint
  • SMEMA compatible

Description

This unit is used for removing dust, particles, glass fiber & etc on bare PCBs surface.

Specifications

Model No.NTM0401-C-M
SizeM
Machine Dimension (mm)
L x W x H
500 x 620 x 1135 mm
Fixed Point to Front
Dimension (X)
186 mm
Weight
(Approximately)
120 kg
Model No.NTM0401-C-L
SizeL
Machine Dimension (mm)
L x W x H
500 x 777 x 1135 mm
Fixed Point to Front
Dimension (X)
186 mm
Weight
(Approximately)
130 kg
